Test facilities

Monday 7 January 2019, by JĂ©rĂ´me Parisot


The important heritage of activities at LESIA has allowed the MESPAL group to collect a wide range of test facilities. These are proposed for LESIA projects and by extension proposed in the frame of GIS-PARADISE of INSU (pooling & sharing of facilities). The different instruments are describred here below.


  • SimEnOm
    Thermal vacuum chamber for space environment simulation, 1m3, temperature range: 80K-370K (cooling with liquid nitrogen).

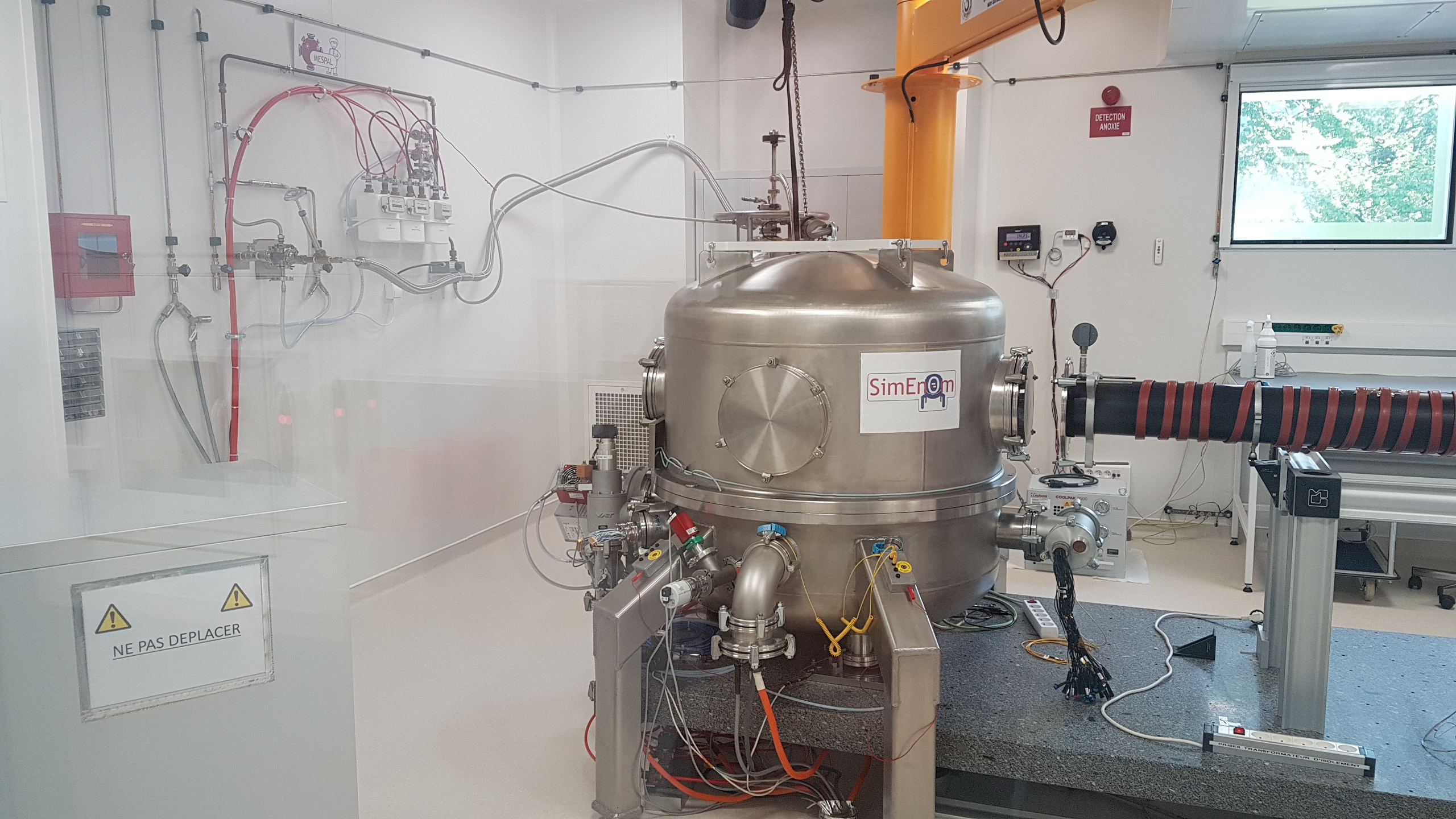

    SimEnOm thermal vacuum chamber
SimEnOm
SimEnOm
  • OBAMA
    Thermal vacuum chamber for the calibration of IR detectors, temperature range : 60K-330K (cooling with cryogenerator).
    OBAMA test facility
OBAMA
OBAMA
  • YACADIR€
    Thermal vacuum chamber for the calibration of IR detectors, temperature range : 40K-330K (cooling with cryogenerator)
    The test bench YACADIR€
YACADIR€
YACADIR€
  • 10K chamber
    Thermal vacuum chamber for the qualification of optical elements, temperature range: 10K-330K (cooling with a 2 stages cryogenerator).
10K chamber
10K chamber
  • Bake-out chamber
    Model CLIMATS V50 (50 liters)
    Pressure < 10-6 mbar
    Only heating function : outgassing in vacuum from ambient temperature to +160°C
    Primary dry pump plus secondary turbo-molecular pump. Cryogenic trap at 14K (cryogenerator)
    Microbalance TQCM (quartz) available.
Bake-out chamber
Bake-out chamber
  • Climat chamber at ambient pressure in a acclimatized room equipped by a mobile hood with laminar flow ISO-7
    Model CLIMATS EXCAL 2221-TA, 206 liters (with forced convection), programmable and remote control.
    Temperature range: -65 to +180 °C

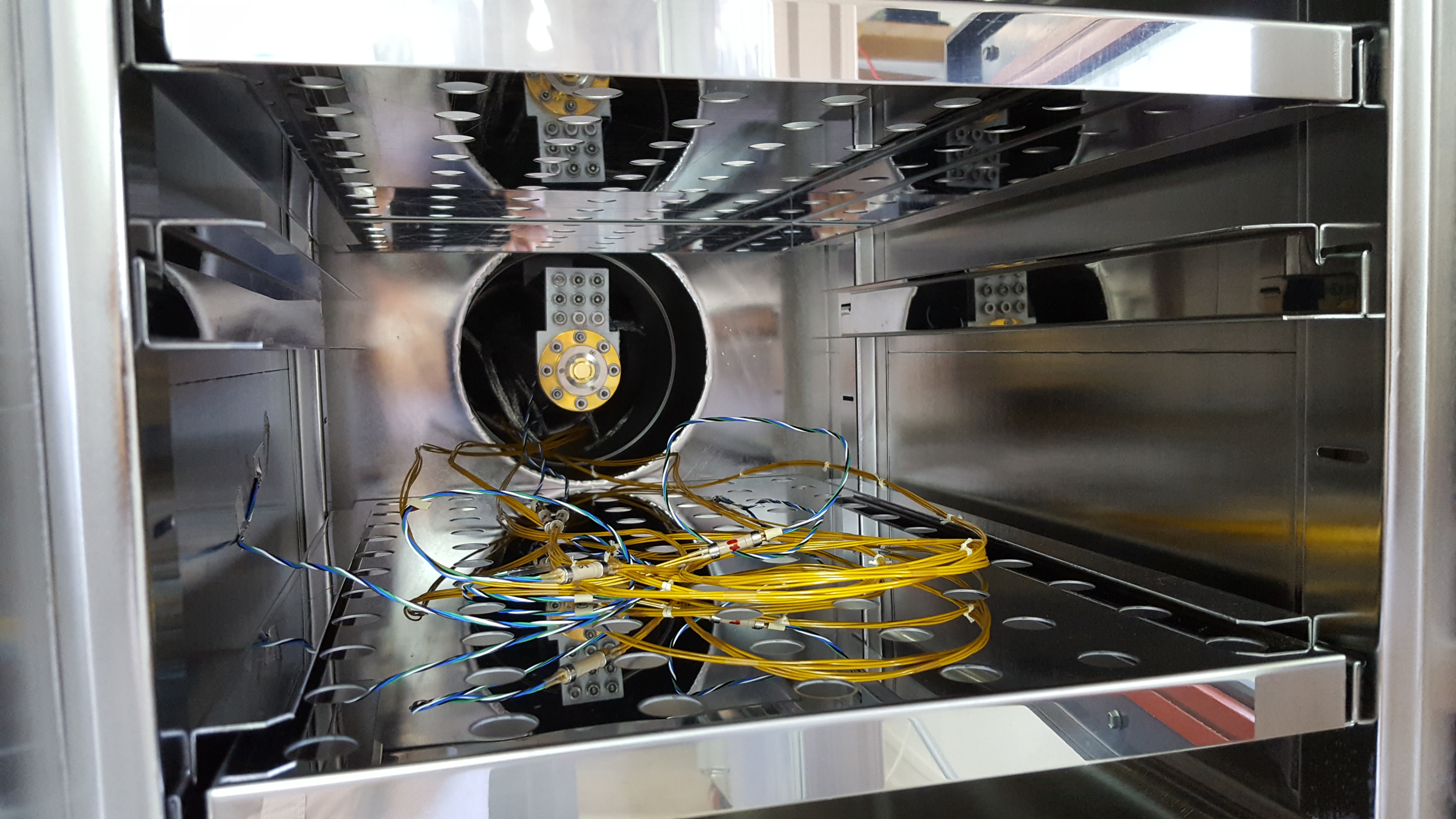

Climat chamber
Climat chamber


  • Chamber with Pelletier heating/cooling for tests on electronics
  • FT-IR spectrometer
    Model AGILENT 660
    Spectral range (cm-1) : Mid IR : 9,000–375
    Wavenumber accuracy : 0.005 cm-1 at 2200 cm-1
    Wavenumber precision : 0.003 cm-1
    Spectral resolution (cm-1) : Better than 0.06
    Interferometer type 38 mm dynamically aligned, 60°mechanical bearing Michelson

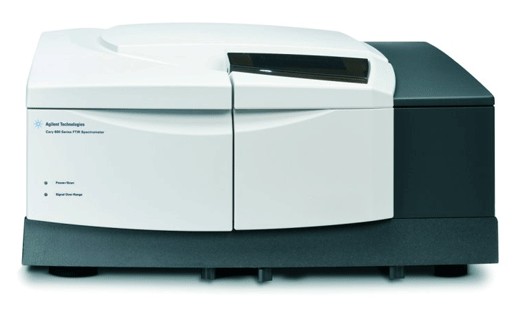

FT-IR spectrometer
FT-IR spectrometer
  • Trinocular magnifier PERFEX ZOOM PRO 10.26
    Magnification 8X to 200X
    CAM. JENOPTIK ARKTUR 8.3MP
    Screen UHD 27’’ (16:9) 4K
    Integrated height comparator
    Located in ISO-7 clean room
Trinocular magnifier PERFEX ZOOM PRO 10.26
Trinocular magnifier PERFEX ZOOM PRO 10.26
  • Binocular magnifier coupled to a photo camera
    Model binocular : NIKON Eclipse L150
    Model photo camera : NIKON D70 + PC
    Located in ISO-7 clean room
Binocular magnifier coupled to a photo camera
Binocular magnifier coupled to a photo camera
  • Thermal camera
    Model : Optris PI 640
    Range : -20 to +100 °C / 0 to +250 °C / 150 to 900 °C
    Focal plane detector matrix (FPA) 640 x 480 pixels

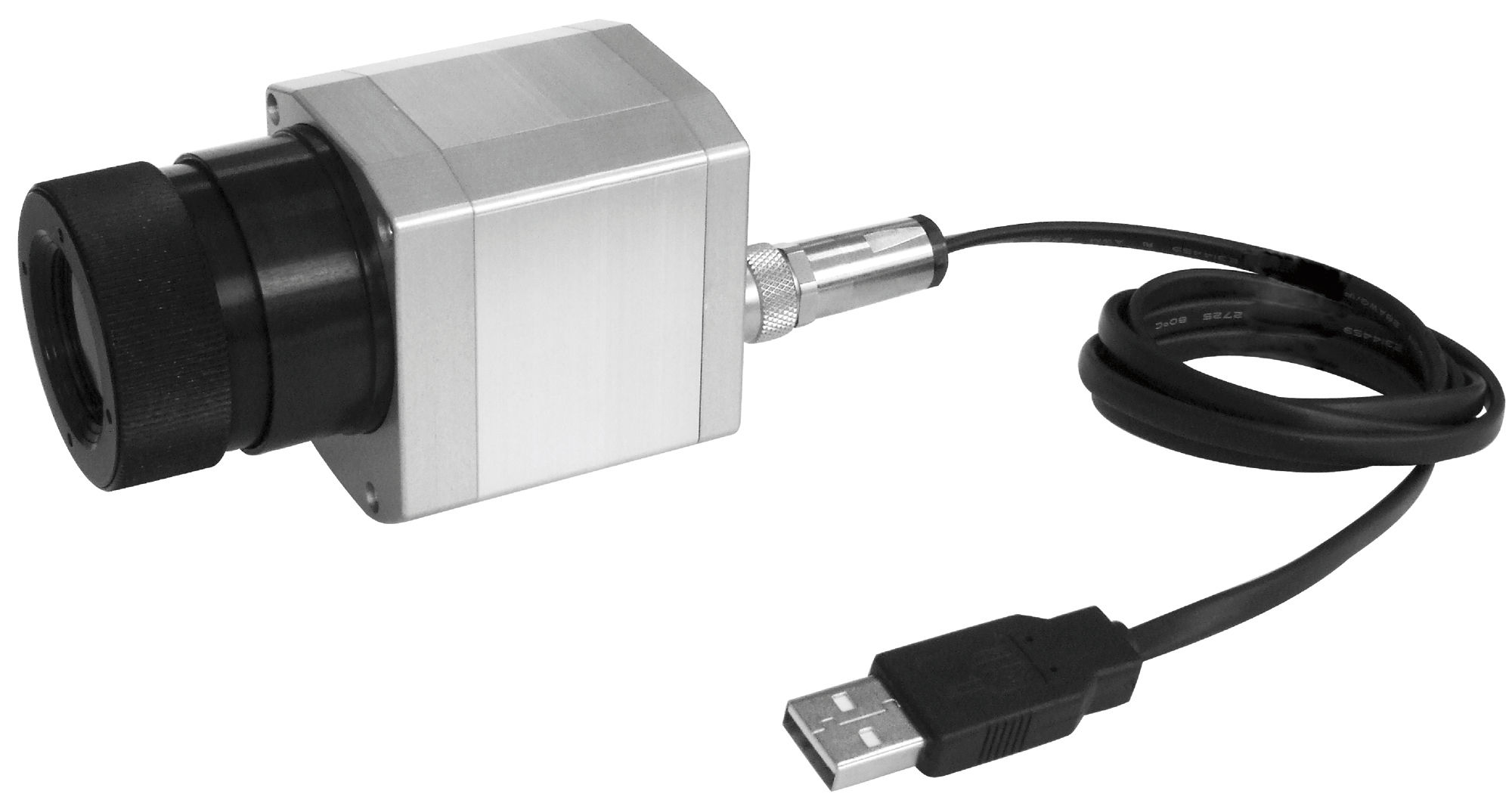

Thermal camera
Thermal camera
  • Portable micro-ohmmeter
    Model AOIP OM16
    Precision : 0,05%
    Resolution : 0,1μΩ

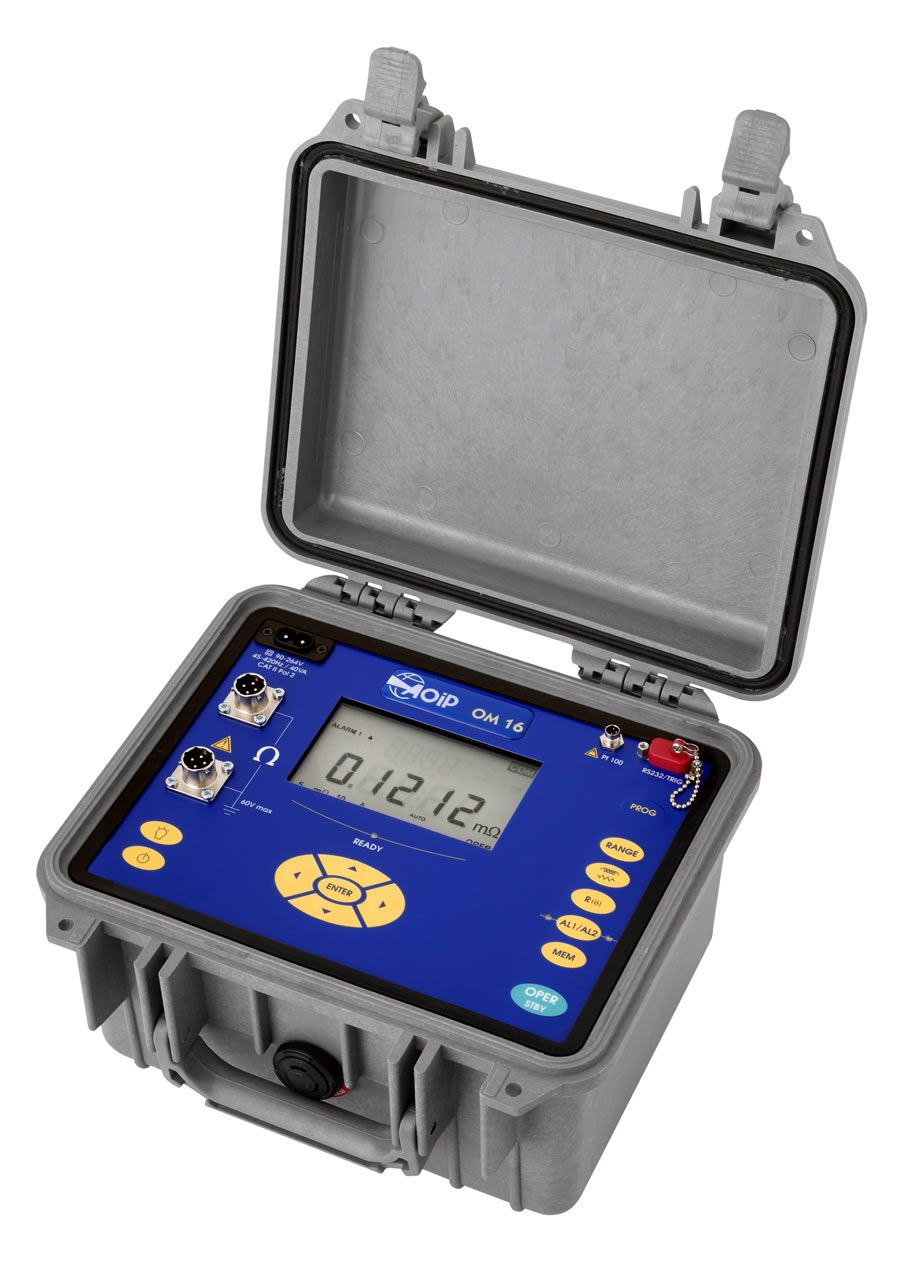

Portable micro-ohmmeter
Portable micro-ohmmeter
  • IR calibration equipment
    integrating spheres, reference detectors, monochromators, stabilized power supplies…

Most of this equipment is located in clean rooms. LESIA has 10 clean rooms allocated over 250m², with cleanliness levels from ISO5 to ISO8.
