(10199) Chariklo
Ephemeris solution
- Observations used : MPC (1988-2017) + OPD (2011,2013,2014) + ESO (2013-2014,GaiaDR2)+ Cerro Tololo (2014) + Occ (2013.06.03,GaiaDR2) + Occ (2014.02.16,GaiaDR2) + Occ (2014.03.16,GaiaDR2) + Occ (2014.04.29,GaiaDR2) + Occ (2014.06.28,GaiaDR2) + THA (2015.03,GaiaDR1) + Occ (2014.04.26,GaiaDR2) + ESO (2015.05) + Occ (2015.05.12,GaiaDR2) + SOAR (2015.07) + ESO (2016.04,GaiaDR1) + SHOC (2016.04.12, offset) + OPD (2016.04) + ESO (2016.06,GaiaDR1) + OPD (2016.07,GaiaDR1) + Occ (2016.07.25,GaiaDR2) + Occ (2016.08.10a,GaiaDR2) + Occ (2016.08.15,GaiaDR2) + Occ (2016.10.01,GaiaDR2) + Occ (2017.02.08, GaiaDR2) + Occ (2017.04.09, GaiaDR2) + OPD (2017.05, GaiaDR1) + Occ (2017.06.22, GaiaDR2+PM) + Occ (2017.07.23, GaiaDR2+PM)
- Observations not used : OPD (2013.08.03) because of bad O-C + Occ (2015.05.12) from MPC (doublon) + Occ (2016.08.08) because bad O-C.
- Observations and residuals file : omc_ast.res
- bsp file : 10199_Chariklo_nima_v15.bsp
- Ephemeris file : ephembsp.res
- Ephemeris version : v15
- Comments : This is an update version of v14 version with new reductions for occultations positions with Gaia DR2.
- Date of creation : 2018-06-13 10:00 (UTC)
Orbit quality
time
|
+0
|
+6
|
+12
|
+18
|
+24
|
σ (α)
|
0.002
|
0.005
|
0.003
|
0.007
|
0.006
|
σ (δ)
|
0.002
|
0.003
|
0.003
|
0.004
|
0.005
|
Time is number of months after last observation (2017-09-14) and σ are in arcsec.

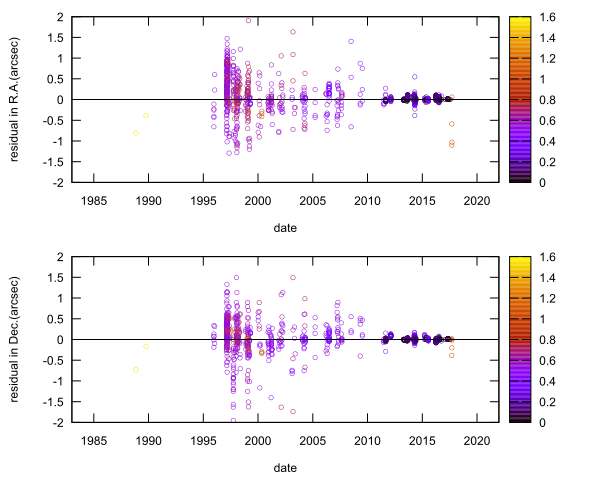

Residuals (O-C) with NIMA ephemeris
z scale (in colour) is the weight in arcsec used in the fitting process
O-C (NIMA) 2013-2018
z scale (in colour) is the weight in arcsec used in the fitting process

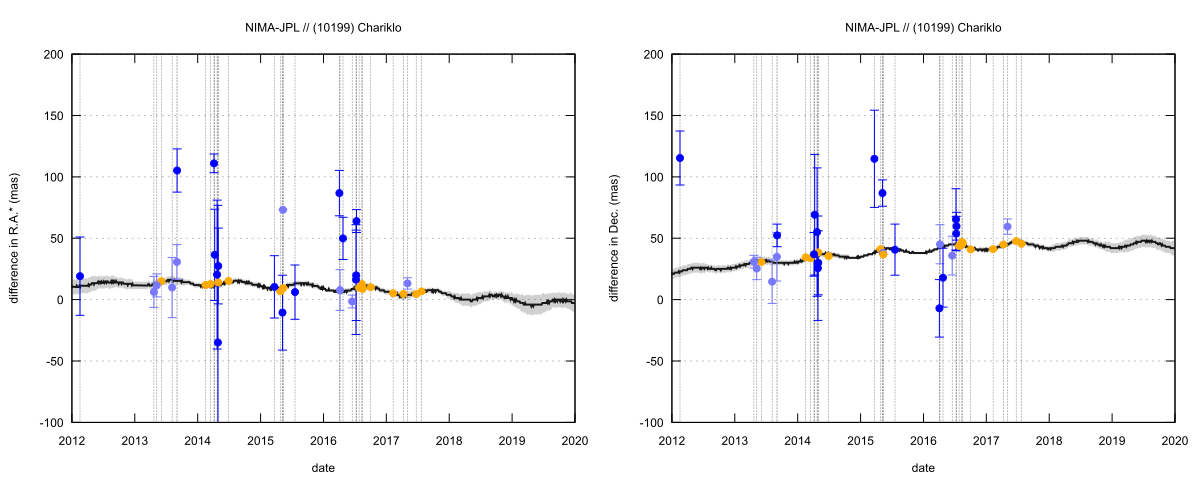

NIMA-JPL (2012-2020)
Blue bullets are 'offset' observations not reduced with Gaia DR1, light blue are 'offset' observations reduced with Gaia DR1, green bullets are 'offset' observations reduced with Gaia DR2, red bullets are 'occultation' positions, light red bullets are 'occultation' positions reduced with Gaia DR1 and orange bullets are 'occultation' positions reduced with Gaia DR2.
Other plots
NIMA-JPL (2012-2020) -- v14 version
NIMA-JPL (2012-2020) -- v15 version : v14 with Gaia DR2 positions for occultations --adopted solution--
