(617) Patroclus
This object has a more recent orbit available here
Object
| Object | (617) Patroclus |
| Diameter(1) | 140 km |
| Dynamic class(1) | trojan |
| Absolute magnitude | 8.33 |
| G slop | 0.15 |
(1) Data from the johnston archive list.
Orbital elements
| Epoch (Julian date) | 2460600.5 |
| Semi major axis | 5.206645 ± 0.000000 au |
| Eccentricity | 0.139696314 ± 0.000000053 |
| Inclination | 22.063825283 ± 0.000005246 ° |
| Longitude of ascending node | 44.351421 ± 0.000014 ° |
| Argument of perihelia | 308.591188 ± 0.000023 ° |
| Mean anomaly | 9.051196 ± 0.000022 ° |
| Orbital period | 11.88 yr |
Ephemeris & Observations
| Ephemeris version | NIMAv7 |
| Observation file |
omc_ast_NIMAv7.txt |
| bsp file | 617_Patroclus_nima_v7.bsp |
| Date of first observation | 1906-10-17 |
| Date of last observation | 2024-07-09 |
| Number of observations used in the fit | 5545 |
| Number of rejected observations | 27 |
| Number of DES observations | 0 |
| Number of MPC observations | 5572 |
| Number of unpublished observations | 0 |
| RMS of observations | 1.474 arcsec |

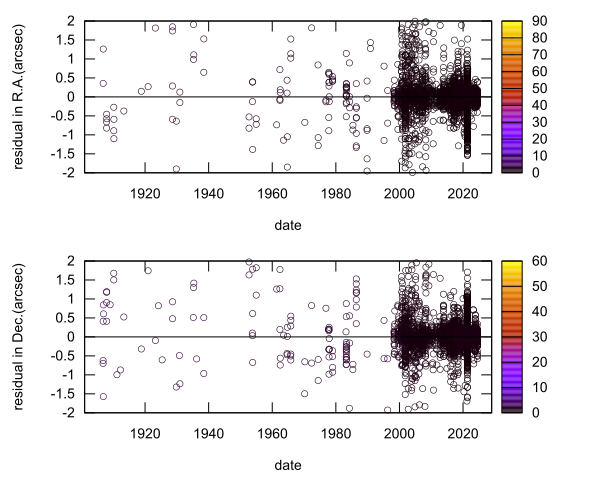

Residuals
Residuals in right ascension and declination compared to NIMAv7 ephemeris.
Colours indicate the estimated precision in arcsec used as weights in the fitting process.
Orbit quality
| date | σα (arcsec) | σδ (arcsec) |
| 2024-01 | 0.032 | 0.022 |
| 2024-07 | 0.037 | 0.034 |
| 2025-01 | 0.036 | 0.033 |
| 2025-07 | 0.035 | 0.031 |
| 2026-01 | 0.043 | 0.039 |
| 2026-07 | 0.035 | 0.023 |
| 2027-01 | 0.048 | 0.031 |
| 2027-07 | 0.033 | 0.017 |
| 2028-01 | 0.043 | 0.024 |

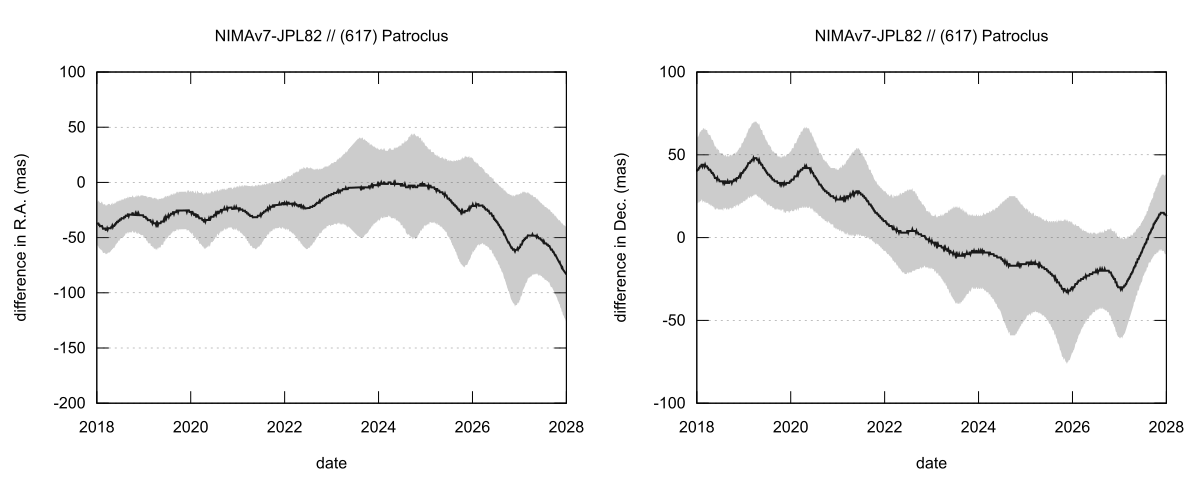

Ephemeris comparison
Difference between NIMAv7 and JPL82 in right ascension (weighted by cos δ) and in declination.
Gray area represents the 1-σ uncertainty of NIMA ephemeris. Green dots represent the DES observations.
