Occultation by 2002KX14 (2018-09-19)
This occultation has a more recent update available here

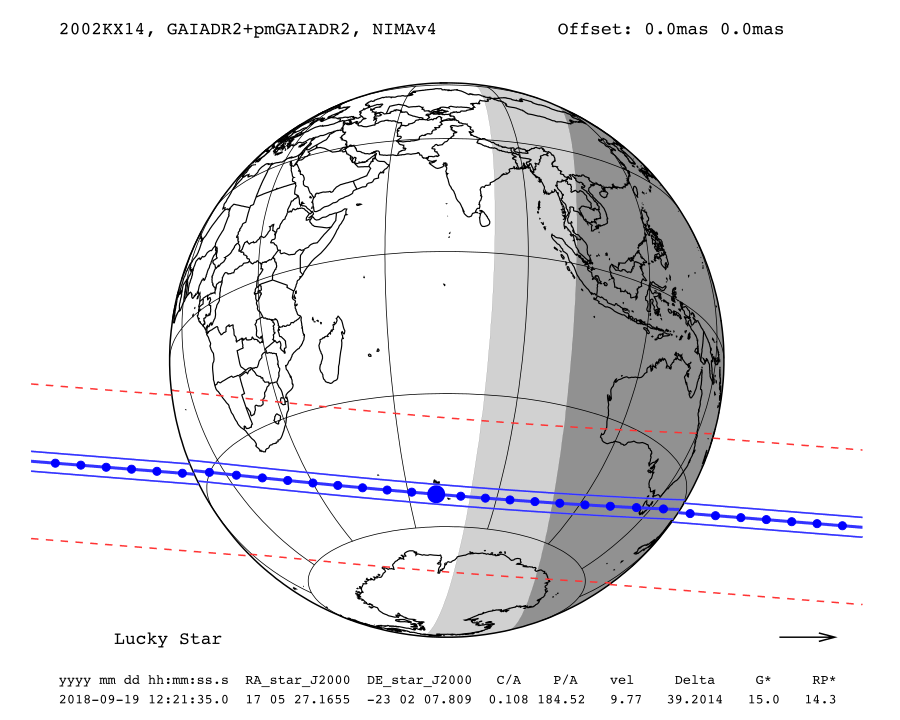

Occultation map
Information about the map:
- The straight and continue lines are the shadow limits considering the estimated radius; when the shadow crosses the Earth's surface, the path is projected on the Earth;
- Each blue dot is spaced by one minute and the big blue dot corresponds to the nominal occultation time (which is the geocentric closest approach);
- The arrow shows the direction of the shadow motion;
- The 1-σ precision along the path is represented by the red dotted line;
- The star G* and RP* are the G (from Gaia) and RP (red photometer from GaiaDR2) magnitudes, normalized to a body moving at 20km/s in order to enhance very slow events;
- The body offset is at the upper right corner, if JPL ephemeris is used;
- Areas in dark grey correspond to full night (Sun elevation below -18 degrees) and areas in light grey correspond to twilight (Sun elevation between -18 and 0 degrees) while daytime is in white;
- Be careful, the dates are from the moment of the event in Universal Time, the night of the event may begin at the date before.
Occultation circumstances
| Date | Wed. 19 Sep. 2018 12:21:35 |
| Star position (ICRF) | 17 05 27.1655 -23 02 07.809 |
| C/A | 0.108 arcsec |
| P/A | 184.52 ° |
| velocity | 9.77 km/s |
| Geocentric distance Δ | 39.2014 au |
| G mag* | 15.0 |
| RP mag* | 14.3 |
| Magnitude drop | 5.0 |
| Uncertainty in time | 399.8 sec |
| Uncertainty in C/A | 54.4 mas |
| Uncertainty in projected distance | 1545.6 km |
| Probability of occultation on centrality | 11.7% |
| Maximum duration | 46.6 sec |
| Moon distance to the object | 36.6° |
| Fraction of illuminated Moon | 73.4 % |
| Solar elongation | 80.8° |
Occulted star
| Star source ID | 4113743899728632704 |
| Stellar catalogue | GAIADR2 |
| Star astrometric position in catalogue (ICRF) | 17 05 27.1654 -23 02 07.778 |
| Star astrometric position with proper motion (ICRF) | 17 05 27.1655 -23 02 07.809 |
| Star apparent position (date) | 17 06 33.7971 -23 03 29.393 |
| Proper motion | μRA* = (0.4 ± 0.1)mas; μDEC = (-9.5 ± 0.1) mas |
| Source of proper motion | GAIADR2 |
| Uncertainty in the star position | RA* = 0.4 mas; DEC= 0.3 mas |
| G magnitude | 15.8 |
| RP magnitude (GaiaDR2) | 15.1 |
Objet
| Object | (119951) 2002KX14 |
| Diameter | 455.0 km |
| Apparent diameter | 16.0 mas |
| Object astrometric position (ICRF) | 17 05 27.1648 -23 02 07.917 |
| Object apparent position (date) | 17 06 33.7965 -23 03 29.501 |
| Uncertainty in position | RA* = 136.9mas DEC = 55.6mas |
| Apparent magnitude | 20.8 |
| Ephemeris | NIMAv4 |
| Dynamic class(1) | inner classic |
| Semi major axis(1) | 39.0 au |
| Eccentricity(1) | 0.042 |
| Inclination(1) | 0.4° |
| Perihelion(1) | 37.4 au |
| Aphelion(1) | 40.7 au |
(1) Data from the johnston archive list.
